SHOCKS CR3 RANGE

Rally (Group N, F2000), Tourism, etc.


A shock absorber with a limited size, it allows an easy adaptation to many types of vehicles, including those requiring the use of the standard strut.


Technical Specifications :

- Shock absorber : Single tube


Available :

- CR30 Model : No adjustment.

- CR31 Model : 1-way adjustment (Rebound)

- CR33 Model : 3-WAY adjustment (Rebound Adjuster, low and high speed compression).


Available in separate canister (Piggyback or Flexible).

Machined aluminium head, rod guide and rod end.

Anti-friction aluminium cylinder.

Single floating piston.


CR30 MODEL


Main Components :

- 1 Piston 35x16

- No Hydraulic Stop

- No adjustment

WAY :

- 0 Way

Separated Canister :

- No

Piggyback :

- No

Eye-to-Eye:

- Compatible

Strut :

- Compatible

Use :

- Rally - Rallycross



CR31 MODEL


Main Components :

- 1 Piston 35x16

- No Hydraulic Stop

- Rebound Adjustment

 WAY :

- 1-Way Adjustment

Separated Canister :

- No

Piggyback :

- No

Eye-to-Eye:

- Compatible

Strut :

- Compatible

Use :

- Rally - Rallycross



CR33 MODEL


Main Components:

- 1 Piston 35x16

- No Hydraulic Stop

- Rebound Adjustment

- Low and High Speed Compression adjustments

WAY :

3-WAY Adjustment

Separated Canister :

- Yes

Piggyback :

- Yes

Eye-to-Eye:

- Compatible

Strut :

- Compatible

Use :

- Rally - Rallycross

Adaptable and customizable :

The settings, hydraulic curve and spring are optimized according to your use (discipline, vehicle, driving).


Additional information :

Can be overhauled in our workshops or authorized service centers and 100% reconditionable

Supplied with spring, compensating spring, preload nut and cup.


Commercial DocumentationDownload

SELECT OPTIONS FOR YOUR SHOCK

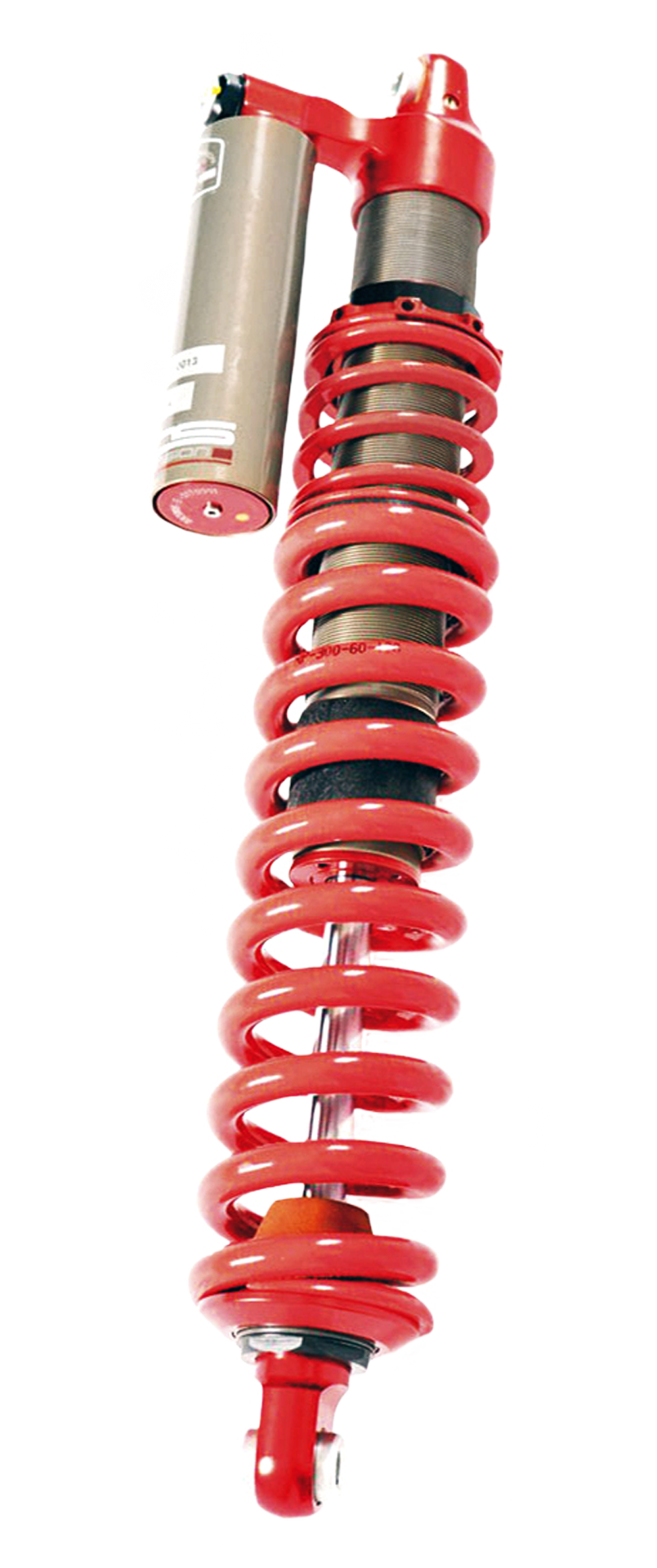

EYE-TO-EYE VERSION

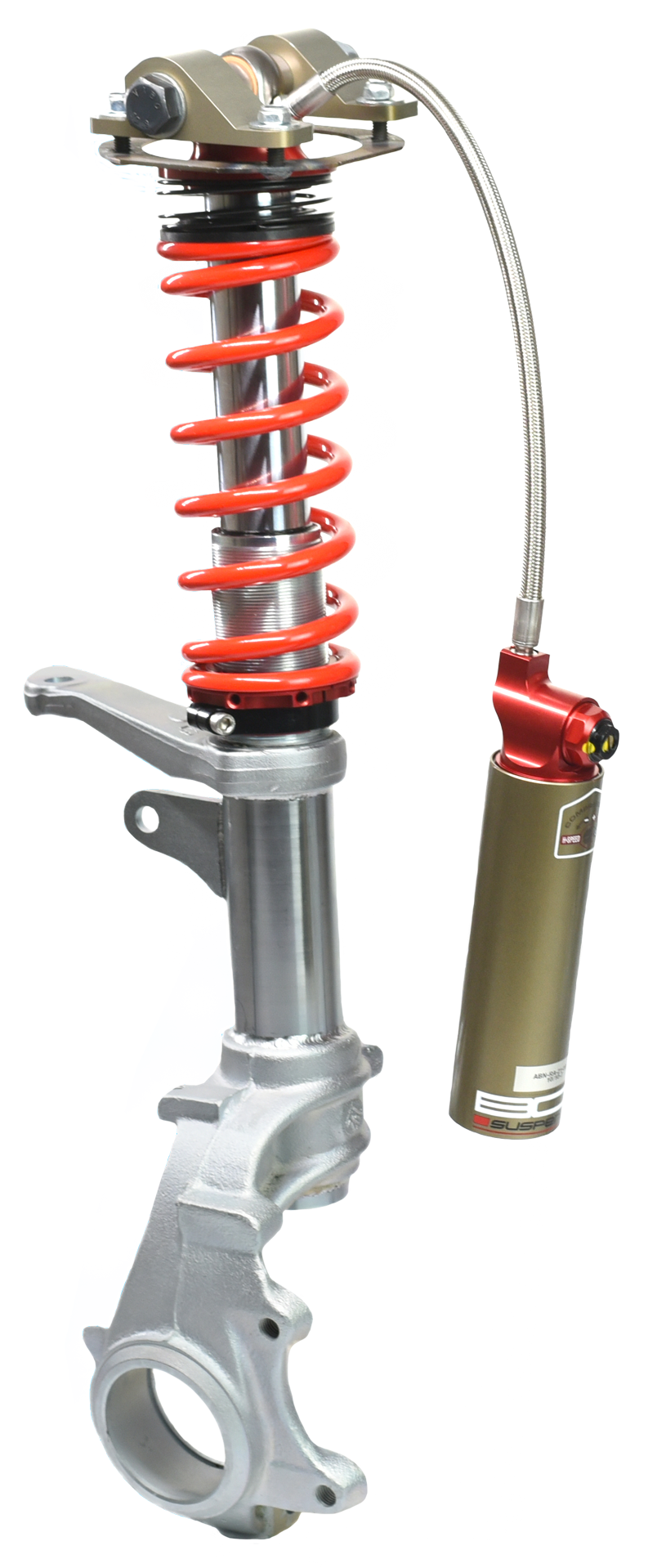

STRUT VERSION

CR30 MODEL

Main Components :

- 1 Piston 35x16

- No Hydraulic Stop

- No adjustement

-

WAY :

- 0-Way Adjustment

Separated Canister :

- No

Piggyback :

- No

----------


CR31 MODEL

Main Components :

- 1 Piston 35x16

- No Hydraulic Stop

- Rebound Adjustment

- Low and High Speed Compression Adj.

WAY :

- 1-Way Adjustment

Separated Canister :

- No

Piggyback :

- No

----------


CR33 MODEL

Main Components :

- 1 Piston 35x16

- No Hydraulic Stop

- Rebound Adjustment

- Low and High Speed Compression Adj.

Ways :

 - 3-Ways Adjustment

Separated Canister :

 - Yes

Piggyback :

 - Yes

----------


CR30 MODEL

Main Components :

- 1 Piston 35x16

- No Hydraulic Stop

- No Adjustment

-

Ways :

- 0 Way

Separated Canister  :

- No

Piggyback :

- No

----------


CR31 MODEL

Main Components :

- 1 Piston 35x16

- No Hydraulic Stop

- Rebound Adjustment

-

Ways :

- 1-Way Adjustement

Separated Canister :

- No

Piggyback :

- No

----------


CR33 MODEL

Main Components :

- 1 Piston 35x16

- No Hydraulic Stop

- Rebound Adjustment

- Low and High Speed Compression Adj.

Ways :

 - 3-Ways Adjustment

Separated Canister :

 - Yes

Piggyback :

 - Yes

----------

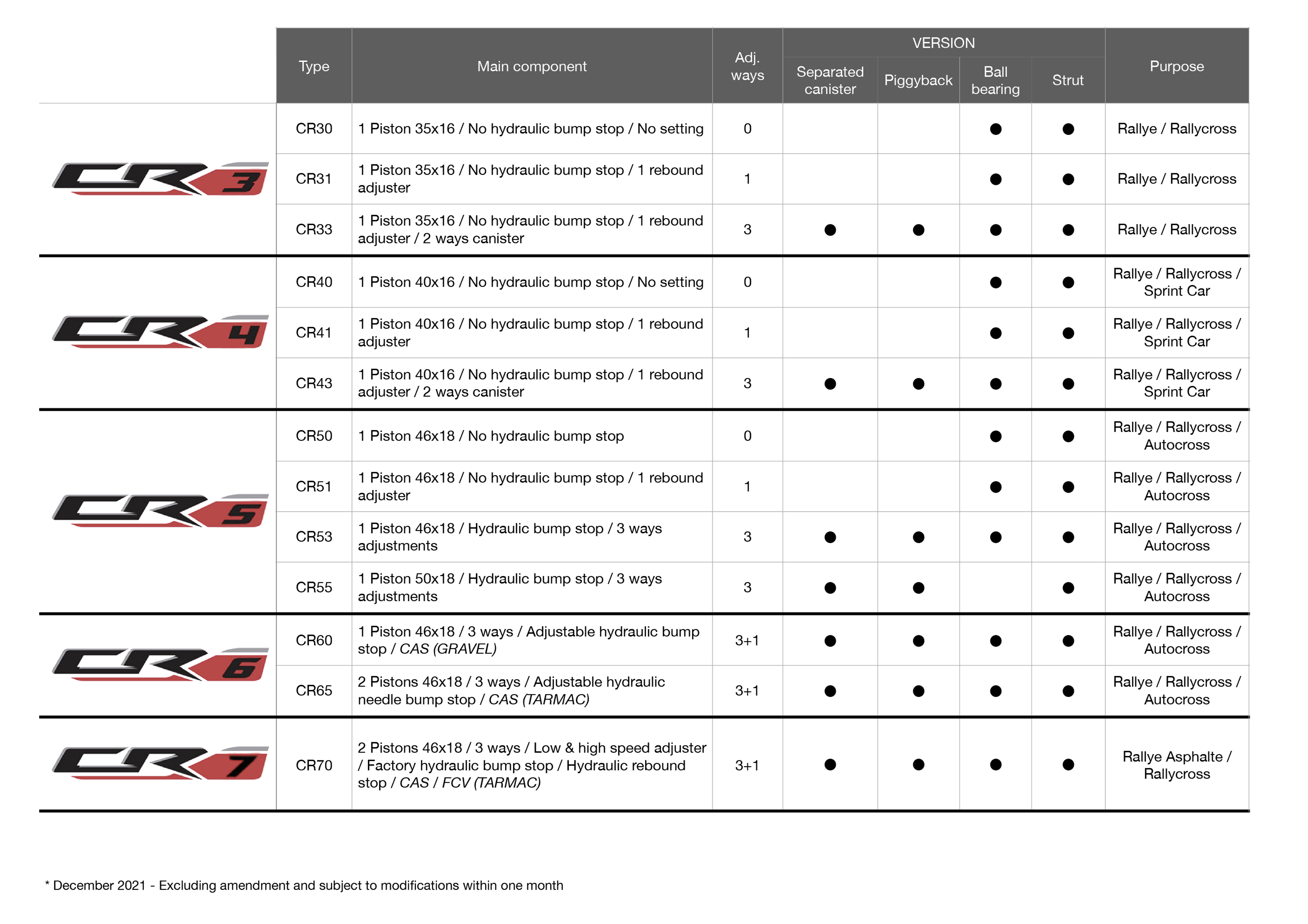

CHECK OUT THE CR RANGE
